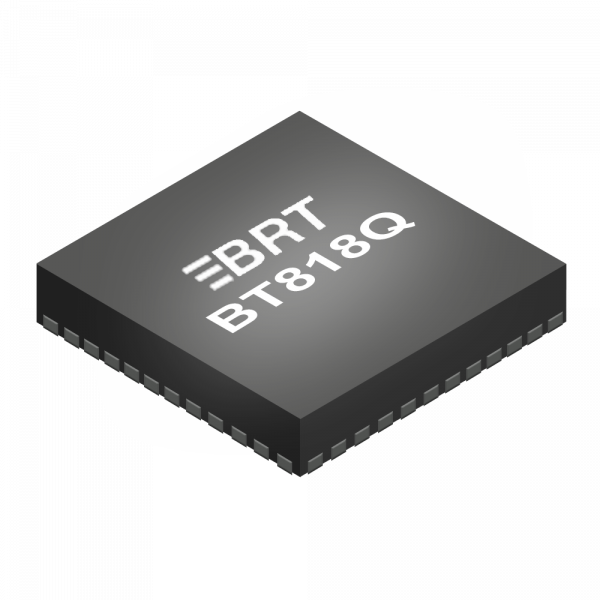

BT818Q

Fourth generation EVE graphics controller IC with resistive touch control and audio output

Interfaces: SPI/ QSPI
Packages: QFN 64
Touch Type: Resistive
Typical Resolution: WXGA (1280 x 800)
Max RGB Width: 24-bit
RAM: 1 MB
Flash Support: Yes
Screen Rotation: Yes
Dedicated PCLK PLL: Yes
Non-Square Pixel Support: Yes
Max Pixels per Line: 2048
Audio: Sigma-Delta
GPIO: 5
BRT Internal IC: NA

Pack of Single Device:

Bridgetek has just released their 4th generation EVE Graphics controller IC with resistive touch and audio output from the EVE series of devices. Ideal for HMI development, this generation allows displays a high resolution of up to 1280 x 800 pixels, supports Unicode strings and has a dedicated port for off-chip flash access for bitmaps and other display asset storage. It also supports adaptive frame rate and adaptive HSYNC modes.

Datasheet

Number	Title	Revision	Last Updated
1	DS_EVE4_BT817/8	1.2	4 April 2022

Application Note

Number	Title	Revision	Last Updated
1	AN_336_EVE_FT8xx-Selecting-an-LCD-Display	2.1	14 November 2017
2	AN_303_EVE_FT800-Image-File-Conversion	1.1	29 September 2015
3	AN_276_EVE_FT800-Audio-File-Conversion	1.0	10 February 2014
4	AN_277_EVE_FT8xx_FT800-Custom-Font-Implement	1.1	29 September 2015
5	AN_390_EVE_FT80x-To-FT81x-Migration-Guide	1.0	30 September 2015
