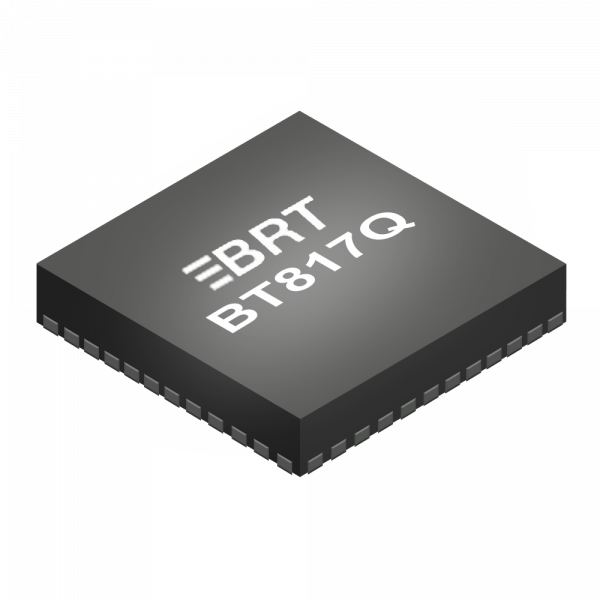

BT817Q

Fourth generation EVE graphics controller IC with capacitive touch control and audio output

Interfaces: SPI/ QSPI
Packages: QFN 64
Touch Type: Capacitive
I/O Levels: 3.3V
Typical Resolution: WXGA (1280 x 800)
Max RGB Width: 24-bit
RAM: 1 MB
Flash Support: Yes
Screen Rotation: Yes
Dedicated PCLK PLL: Yes
Non-Square Pixel Support: Yes
Max Pixels per Line: 2048
Audio: Sigma-Delta
GPIO: 5
BRT Internal IC: NA

Pack of Single Device:

Bridgetek has just released their 4th generation EVE Graphics controller IC with capacitive touch control with up to 5 touch detection and audio output from the EVE series of devices. Ideal for HMI development, this generation allows displays a high resolution of up to 1280 x 800 pixels, supports Unicode strings and has a dedicated port for off-chip flash access for bitmaps and other display asset storage. It also supports adaptive frame rate and adaptive HSYNC modes.

Datasheet

Number	Title	Revision	Last Updated
1	DS_EVE4_BT817/8	1.2	4 April 2022

Application Note

Number	Title	Revision	Last Updated
1	AN_336_EVE_FT8xx-Selecting-an-LCD-Display	2.1	14 November 2017
2	AN_303_EVE_FT800-Image-File-Conversion	1.1	29 September 2015
3	AN_276_EVE_FT800-Audio-File-Conversion	1.0	10 February 2014
4	AN_277_EVE_FT8xx_FT800-Custom-Font-Implement	1.1	29 September 2015
5	AN_390_EVE_FT80x-To-FT81x-Migration-Guide	1.0	30 September 2015
6	BRT_AN_090_EVE_Working-with-Capacitive-Touch-Screens	1.1	29 April 2024
