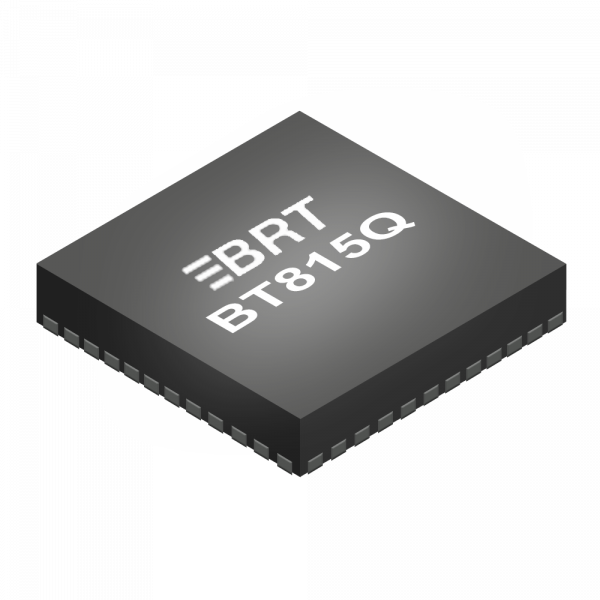

BT815Q

Third generation EVE graphics controller IC with capacitive touch control and audio output

  • Interfaces: SPI/ QSPI
  • Packages: QFN 64
  • Touch Type: Capacitive
  • Typical Resolution: SVGA (800 x 600)
  • Max RGB Width: 24-bit
  • RAM: 1 MB
  • Flash Support: Yes
  • Screen Rotation: Yes
  • Dedicated PCLK PLL: No
  • Non-Square Pixel Support: No
  • Max Pixels per Line: 2048
  • Audio: Sigma-Delta
  • GPIO: 5
  • BRT Internal IC: NA

Pack of Single Device:

Buy Now

Graphics controller IC with capacitive touch control and audio output from the EVE series of devices. Ideal for HMI development in displays upto 800 x 600 pixel resolution, supports Unicode strings and has a dedicated port for off-chip flash access for bitmaps and other display asset storage.

Datasheet
NumberTitleRevisionLast Updated
1DS_EVE3_BT815/61.126 April 2022
Application Note
NumberTitleRevisionLast Updated
1AN_336_EVE_FT8xx-Selecting-an-LCD-Display2.114 November 2017
2AN_303_EVE_FT800-Image-File-Conversion1.129 September 2015
3AN_276_EVE_FT800-Audio-File-Conversion1.010 February 2014
4AN_277_EVE_FT8xx_FT800-Custom-Font-Implement1.129 September 2015
5AN_390_EVE_FT80x-To-FT81x-Migration-Guide1.030 September 2015
6BRT_AN_090_EVE-Working-with-Capacitive-Touch-Screens1.129 April 2024
